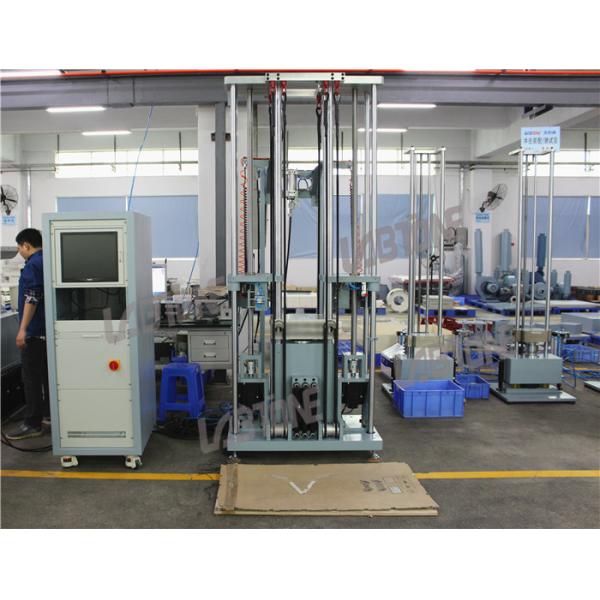

New High Acceleration Shock Testing System with the range of 35000G

Name: New High Acceleration Shock Testing System with the range of 35000G
Brand: LABTONE
Price: 1 USD

China New High Acceleration Shock Testing System with the range of 35000G wholesale

Brand Name : LABTONE

Model Number : G-HSKT5

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1SET

Price : Negotiable

Payment Terms : T/T

Supply Ability : 15 Sets / Month

Delivery Time : 45 working days

Packaging Details : International wooden case

Model : G-HSKT5

Table size : 200 x 200

Specimen max weight(kg) : 10

Shock pulse : half sine

Acceleration range (m/s2) : 20----5000

Pulse duration range (ms) : 0.2~11

Contact Now

New High Acceleration Shock Testing System with the range of 35000G

Product description

The High Acceleration Shock Tester is designed to meet the requirements of military, durable goods and other industries to perform high acceleration drop testing. To increase the initial velocity, air pressure reverse thrust or spring accumulation is incorporated into the test system to achieve a variety of acceleration profiles by adjusting the pressure. The acceleration kit is equipped in this test system for high acceleration that is otherwise difficult to achieve.

Functions and Features

A low-pressure cylinder is used to supply reverse thrust force and braking. The use of the cylinder is safe, reliable and easy to maintain.
Two pneumatic brake mechanisms work simultaneously to ensure reliable locking.
Electric hoist lifting and positioning system enables precise drop repeatability

Floating Seismic Base to limit the shock energy that transmits to the floor
Full range of applications training programs available
Worldwide Customer Service department

Shock testing systems Specifications

Model		SKT30	SKT50	SKT100	SKT200	SKT300	SKT600	SKT1000
Table size (cm)		40*40	50*60	70*80	100*100	120*120	150*150	200*200
Maximum Specimen Weight(Kg)		30	50	100	200	300	600	1000
Max acceleration(G)	half sine	600	600	600	500	500	300	300
	saw-tooth waveform	100	100	100	100	100	100	100
	square	150	150	150	150	100	100	100
Pulse Duration (ms)	half sine	40—0.2	40~1	40~1	30~2	20~3	20~3	20~3
	saw-tooth waveform	18~6	18~6	18~6	18~6	18~6	18~6	18~6
	square		30~6	30~6	30~6	30~6	30~6	30~6
Machine Dimension(cm)		120110245	130140260	130120260	150130260	200160300	230180310	250220310
Controller cabinet Dimension(cm)		W55D50H80
Machine Weight(Kg)		1900	2300	3200	4200	8500	15500	19500
Utility		3-phase AC380V 50/60Hz 0.5~0.8MPa
Requirements		3-phase AC380V 50/60Hz 0.5~0.8MPa
Conforming standards		GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL

High acceleration shock testing systems specifications:

Model	HSKT10	HSKT10	GSKT10D
Table size (cm)	15*15	20*20	20*20
Shock pulse	Half sine
Maximum Specimen Weight(Kg)	5	10	10
Acceleration Range(G)	20 ~ 1500	20 ~ 1500	20 ~ 10000
Pulse Duration (ms)	0.5~11	0.5~11	0.2~11
Machine Dimension(cm)	6055250	6055250	9070275
Utility Requirements	AC220V 50Hz 5A,Air pressure: more than 0.5Mpa
Machine Weight(Kg)	600	650	110

New High Acceleration Shock Testing System with the range of 35000G

Product Option Highlights

Customized table mounting patterns available
Dual Mass Shock Amplifiers to generate extremely high acceleration levels (30,000g+)
Additional Shock Pulse Programmers for short and long duration half sine, trapezoidal, and terminal peak sawtooth shock pulses
Test Partner Data Acquisition and instrumentation for data collection and analysis

Warranty: 12 months from delivery, lifelong time maintainance.

After-sale service: feedback within 4-8 hours after get the call or email.

Service: OEM, ODM

Certificate: China official third-party calibration report / CE Certification

Welcome to contact us with your vibration test inquiry.
